The LR-24 Electrofisher is a rugged 24 volt battery powered electrofisher. It is suitable for extensive field work in any weather conditions. This combo package includes the electrofisher, battery and charger, electrode pole, electrode ring, and cathode.
LR-24 BACKPACK ELECTROFISHER
$23,238.08 ex. GST
Description
The LR-24 Electrofisher is a rugged 24 volt battery powered electrofisher. It is suitable for extensive field work in any weather conditions. The LR-24 uses premium electronic components and circuity housed inside of a custom molded plastic case.
The LR-24 is the most advanced electrofisher ever produced. The user interface is designed to make the LR-24 quick and easy to use. This has allowed us to offer a number of special features not available on previous backpack electrofishers.
TECHNICAL SPECIFICATIONS
| Output Power | 400W continuous, 39,600W peak |
|---|---|
| Output Voltage | 50 to 990V in 5V steps |
| Output Frequency | 0 to 120Hz in 5Hz steps, Gated burst up to 1000Hz |
| Duty Cycle | 0% to 99% in 1% steps |
| Output Current | 40A peak max, 4A continuous at 100V |
| Output Waveforms | Smooth DC, Pulsed DC, Burst of Pulses DC |
| Waveform Storage | Save voltage, frequency, duty cycle and pulse type for 10 different waveforms |
| Operational Duty Cycle | 40% Max. (192 seconds on 288 seconds off) at 40° C ambient 400VA output |
| Overload Protection | Excessive peak current, average current or over-temperature will shutdown the unit before damage can occur. Resets automatically when condition is corrected |
| Output Indicator | Audio tone for 30VDC and greater and increasing pulse rate for output power, Flashing red light, Status display for output voltage both average and peak, output current both average and peak and output power |
| Metering | Peak and average output current, Peak and average output voltage, Peak and average output power, Battery voltage, Battery current, Battery fuel gauge, Timer, Waveform settings, Error messages, Fault conditions |
| Output On Timer | 0 to 999,999 seconds, resettable via menu |
| Environmental Requirements | Operational altitude: -400 to 3000 meters Relative humidity: 10% to 90% noncondensing Operating temperature: 0° to 40° C Storage temperature: -15° to 50° C |
| Construction | Sealed molded polyethylene and ABS case NEMA 4, IP 65 |
| Safety Devices | Output indicator Tilt switch: Forward 50°, backward 40°, sideways 45° all ± 10° Immersion sensor Electrode out of water sensor Electode pole switch Emergency stop switch Battery compartment interlock Battery fuseable link |
| Battery | Choice of 24V lithium or lead-acid batteries |
| Battery Life | 40 minutes continuous at 100W with 7Ah lead-acid battery |
| Size and Weight | Height: 27.5 in (69.9 cm) Width: 14.5 in (36.9 cm) Depth: 14.5 in (36.9 cm) Weight: 20.35 lb. (9.23 kg) without battery or accessories |
| Certifications | UL STD 61010A-1 CAN/CSA C22.2 STD NO. 1010.1 |
Specifications subject to change without notice.

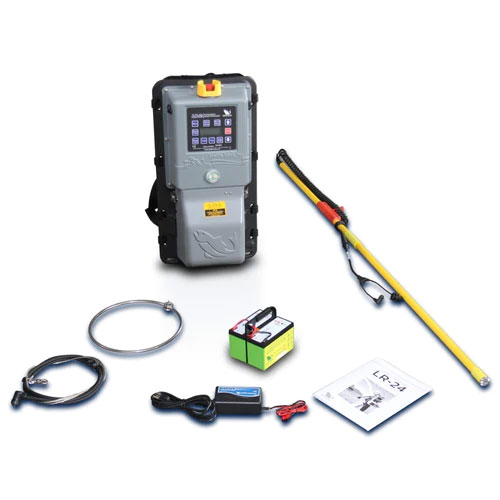

What’s Included
- LR-24 Backpack Electrofisher
- Adjustable Shoulder Harness
- 6 ft. 2-Piece Electrode Pole
- 11 in. Adjustable Stainless-steel Electrode Ring
- Rat-tail Cathode
- (1) 24V 11.1Ah Lithium Battery or (1) 24V 7Ah Battery
- UBC-24 Battery Charger
- Voucher for Electrofishing Principles and Safety Certification Course ($500 value)
