Description
| Housing dimensions (H x W x D) | 96 x 45 x 110.5 mm |
| Housing type | DIN rail housing (for DIN rail version EN 50022) |
| Housing material | Polycarbonate |
| Weight | approx. 197 g / 224 g (incl. connectors) |
| IP Code | IP20 |
| Power supply | 12-24 V DC -15% / +20%, reverse-polarity protected |
| Max. power consumption | 20 Watt (incl. 1 A total USB output current) 1 |
| Operating temperature | -40 °C….+55 °C |
| Storage temperature | -40 °C….+85 °C |
| Humidity (at 40°C) | 93% (non-condensing) |
| Interfaces | 2 x USB A (Total current draw from both sockets max. 1 A) 2 2 x RJ45 10/100 Ethernet (using separate MAC addresses) 1 x RS485 screw-type terminal (not galvanically isolated) 1 x Micro-USB (solely for image transfer to eMMC) 1 x Micro HDMI 1 x PiBridge system bus 1 x ConBridge system bus |
| Connectors | 1 x 4-pole screw-type terminal for relay contact and signal input 1 x 8-pole spring clamp connector for power supply |
| Processor | Broadcom BCM2837B0 quad-core ARM Cortex A53 |
| Clock rate | 1.2 GHz |
| Processor cooling | Passive with heat sink |
| RAM | 1 GB |
| Flash memory | 8 GB (Article No.: 100302) / 16 GB (Article No.: 100303) / 32 GB (Article No.: 100304) |

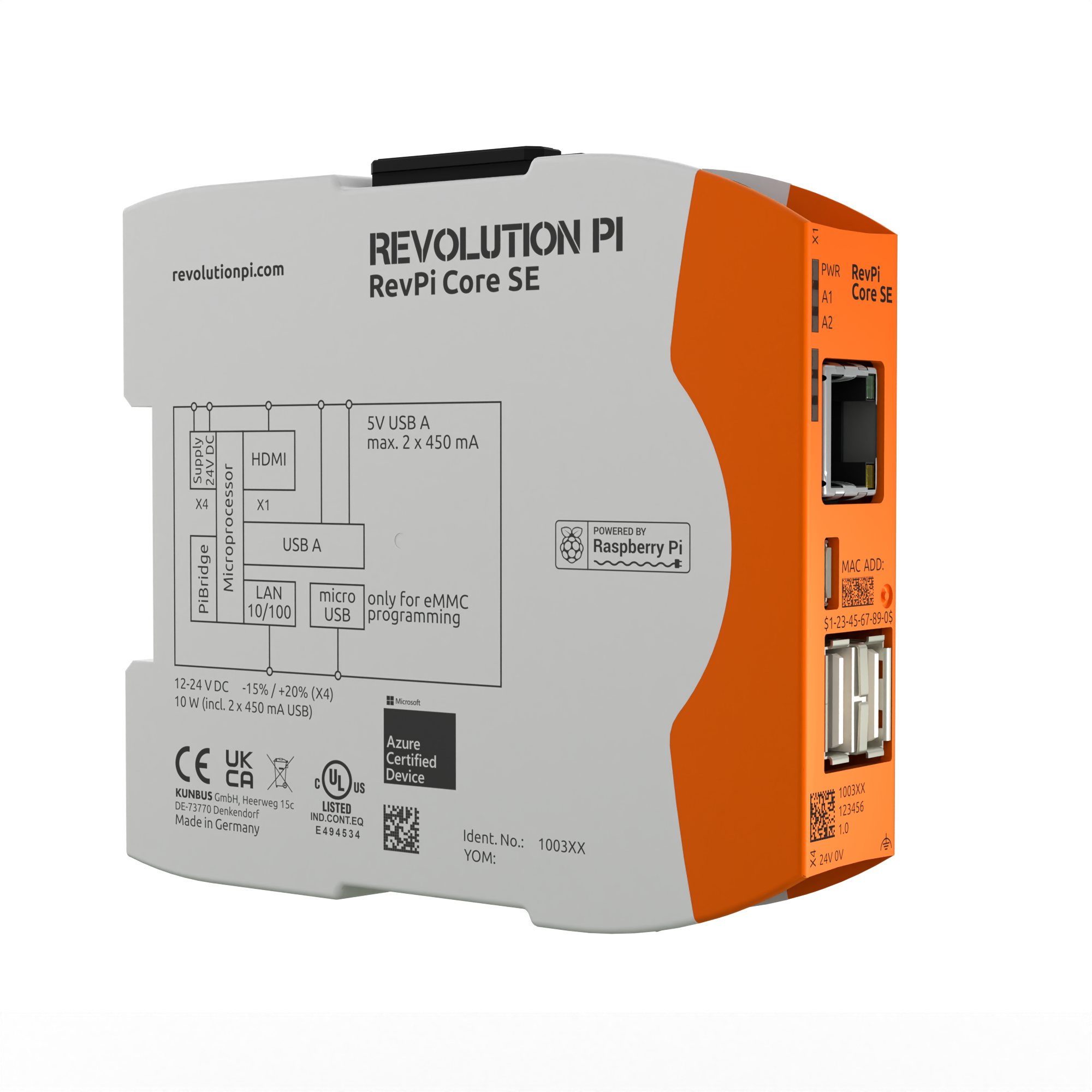

KUNBUS overview RevPi S and SE series 1
KUNBUS overview RevPi S and SE series 2
KUNBUS difference S series to SE series RevPi Core S SE
