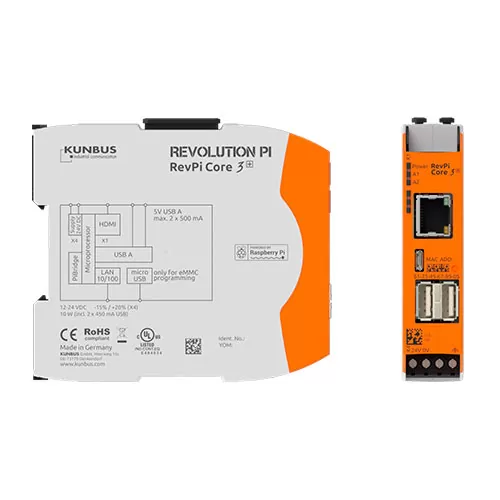

Description
| Housing dimensions (HxWxD) | 96 x 22.5 x 110.5 mm |
| Housing type | DIN rail housing (for DIN rail version EN 50022) |
| Housing material | Polycarbonate |
| Weight | approx. 115 g |
| Protection class | IP20 |
| Power supply | 12-24 VDC -15 % / +20 %, reverse polarity protected 1 |
| Max. power consumption | 10 W (incl. 900 mA total USB load) 2 |
| Operating temperature | -40 °C to +55 °C |
| Storage temperature | -40 °C to +85 °C |
| Humidity (40 °C) | up to 93 % (non-condensing) |
| Interfaces | 2 x USB A (Total current consumption from both sockets max. 900 mA) 2 1 x RJ45 10/100 Ethernet 1 x Micro-USB (solely for image transfer to eMMC) 1 x Micro HDMI 2 x PiBridge system bus |
| Connectors | 1 x 4-pole screw-type terminal for power supply |
| Processor | Broadcom BCM2837B0 quad-core ARM Cortex-A53 |
| Clock rate | 1.2 GHz |
| Processor cooling | Passive with heat sink |
| RAM | 1 GB |
| Flash memory | 8 GB (article no.: 100299) / 16 GB (article no.: 100300) / 32 GB (article no.: 100301) |
| Compatible modules for system expansion | All RevPi IO modules and RevPi Gate modules can be connected via the PiBridge system bus |
| ESD protection | 4 kV / 8 kV (according to EN 61131-2 and IEC 61000-6-2) |
| EMI tests | Passed (according to EN 61131-2 and IEC 61000-6-2) |
| Surge / Burst tests | Passed (according to EN 61131-2 and IEC 61000-6-2) |
| Buffer time RTC | min. 24 h |
| Optical indicator | 3 status LEDs (bi-color), two of them freely programmable |
| Conformity | RoHS |
| Markings and certifications | CE, UL |
